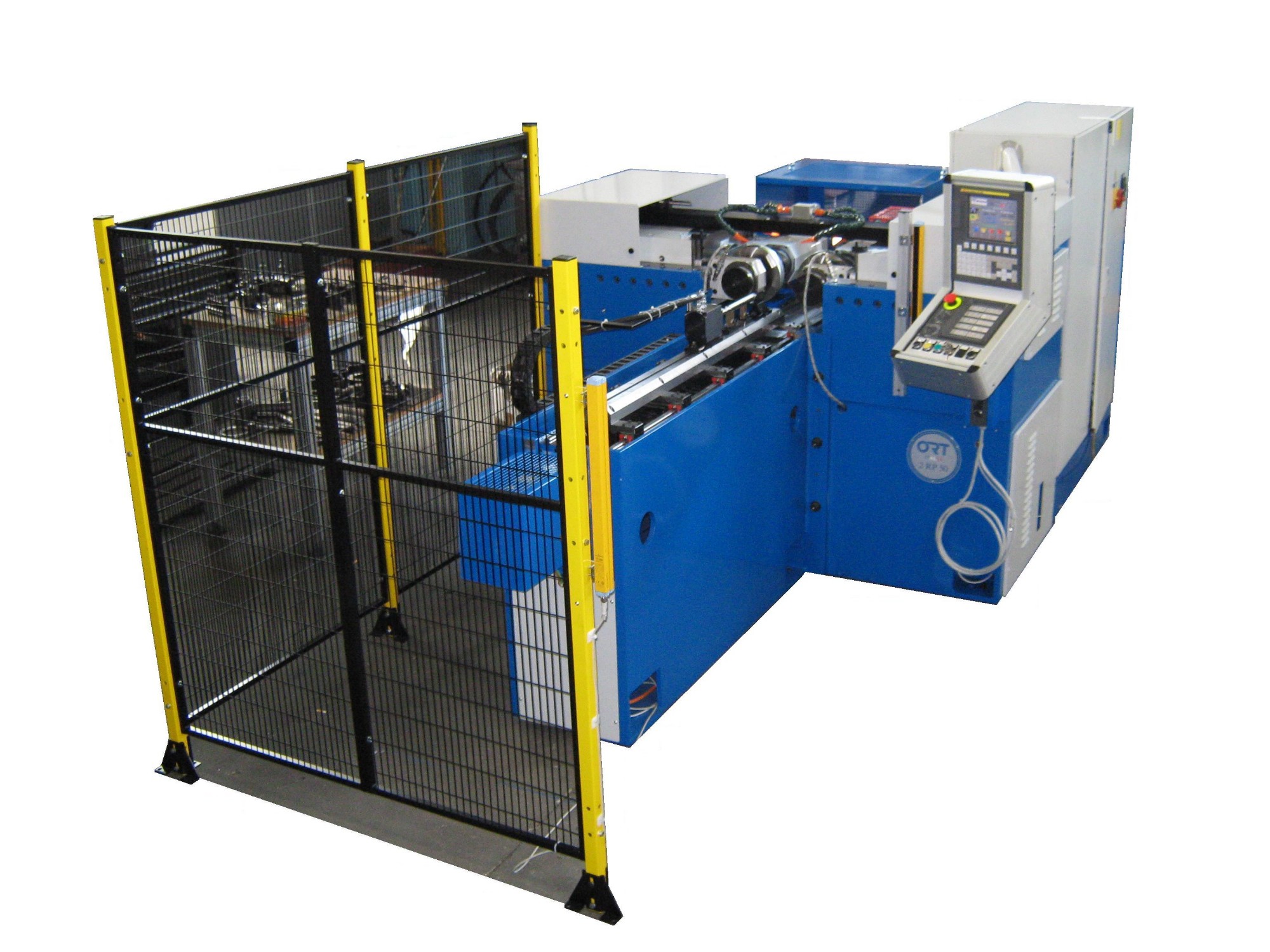

The 2MS series is perfectly suitable for spline rolling, it is equipped with two rolling spindles driven by directly connected brushless motors. The 2MS machines have two moveable heads and they are equipped with loading and unloading system, which is necessary for ideal placing of the work piece. Its pressing force is ranging from 180 to 1200 kN and it can be equipped with PLC or CNC control unit with optional controlled piece pick-up device, which allows to perform many operations in one unique cycle.
該2MS系列非常適合花鍵滾絲，它配有兩個滾動軸，直接連接無刷電機驅動。2MS系列配有兩個可移動滾絲頭，并且配有上料和下料系統。這是工件理想放置的必要條件。它的壓緊力范圍是從180千牛到1200千牛。它可以配備帶可選工件拾取裝置的PLC或CNC控制單元，允許在一個周期內執行許多操作。

Product Description

產品描述

Cold forming advantages:

冷成形優勢

·         Low cycle time

·         縮短循環周期

·         Low cost production per part

·         降低部件生產成本

·         Improved mechanical properties of material

·         提高物料的機械屬性

·         Outstanding surface quality

·         杰出的表面質量

·         High precision

·         高精度

·         No material waste

·         無材料浪費

Newly redesigned machine frame 新設計的機器框架

The machine’s base geometry has been designed with the use of FEM calculation system, and is thus characterized by high strength and rigidity. Therefore it gives almost complete reduction of bending even of the most stubborn burrs.
機器的基本幾何形狀是使用FEM計算系統設計的，因此具有高強度和高剛性的特點。

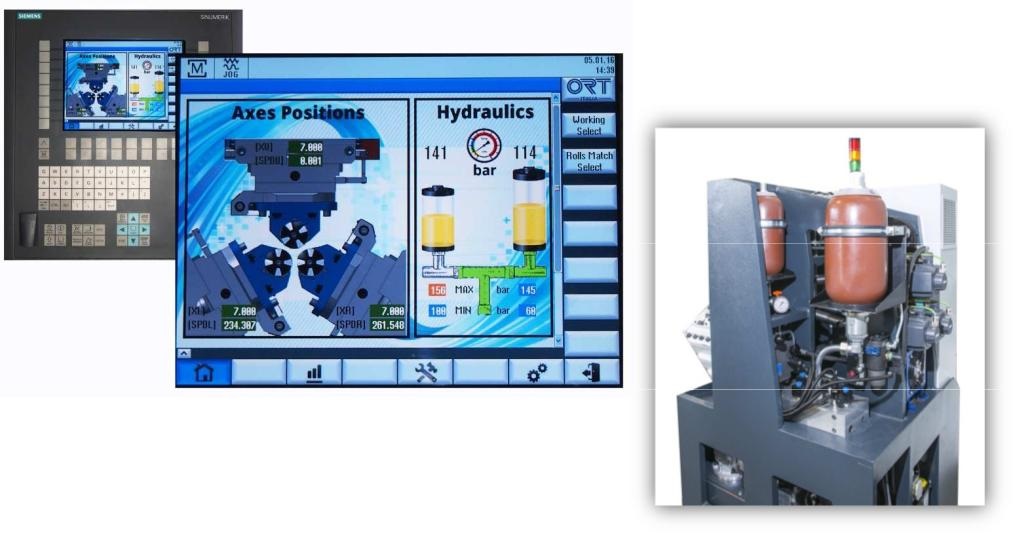

In the table below we present the comparison between a thread rolling machine equipped with traditional hydraulic system and the same machine with the "Energy Saving" installed on board.
在下表中，我們呈現了配備傳統液壓系統的滾絲機與配備“節能系統”的滾絲機的對比。

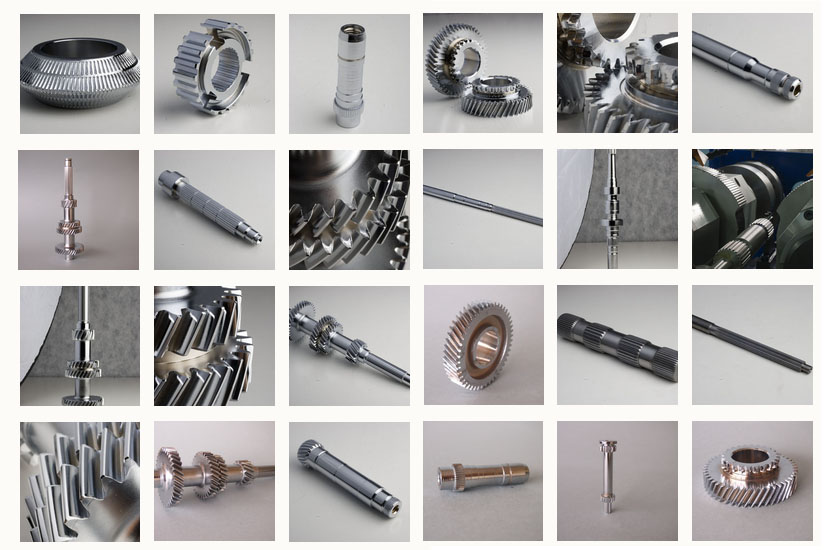

可加工的部分工件：
